Precleaning Machines

PRE-CLEANER WITH ASPIRATOR(W.T)

The main function of this pre cleaner is to remove oversized and undersized impurities such as stones and sand from the paddy.This is also removes impurities such as dust and straw.

Advantages :-

  • Screen frame is mounted on a specially designed wheel arrangement.
  • This wheel arrangement results in more stability and lower maintence cost.
  • Equipped with inbulid aspiration system for dust separation.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
PRTF04 PRE-CLEANER WITH ASPIRATOR(W.T) 3 Ton/hr 254 RPM 3 HP/ 1440 RPM * 3116*1500*2230

PRE-CLEANER MAX MFD

The main function of this pre cleaner is to remove oversized and undersized impurities such as stones and sand from the paddy.This is also removes impurities such as dust and straw.

Advantages :-

  • Equipped with inbuild aspiration system for dust separation.
  • Design to accomidate easily removable trays.
  • Robust frame design resulting in longer life.
  • Easy to operate and low maintenance.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
PRTSM00 PRE CLEANER MAX MFD 4 Ton/hr 270 RPM 3 HP/ 1440 RPM* 2700 * 1700 * 2433

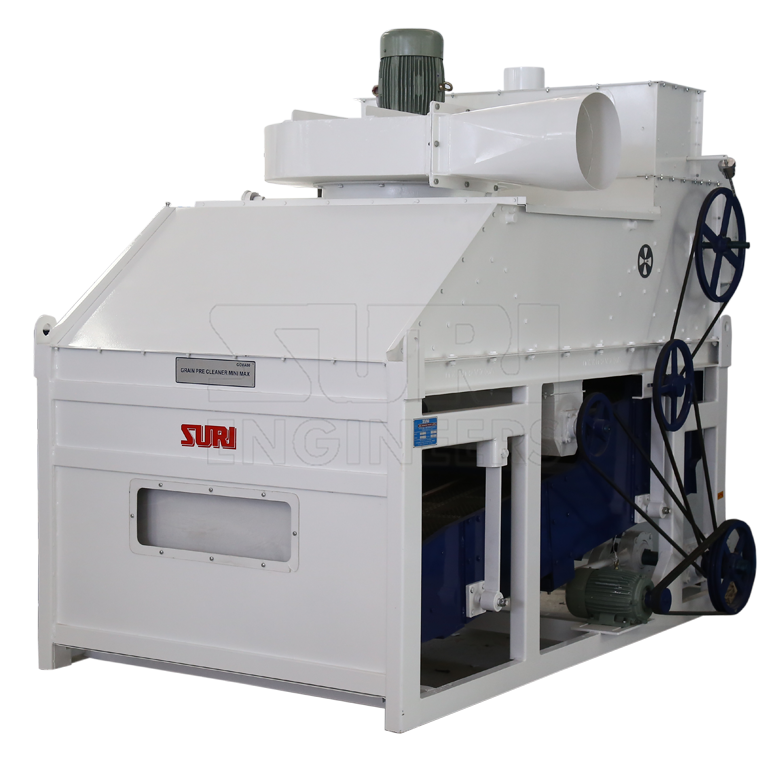

PRE-CLEANER MINI MAX MFD / GRAIN PRE - CLEANER MINI MAX

The main function of this pre cleaner is to remove oversized and undersized impurities such as stones and sand from the paddy.This is also removes impurities such as dust and straw.

Advantages :-

  • Equipped with highly efficient section blower.
  • design to accomidate easily removable trays.
  • providedwith conveyor system which easily discharge immature paddy.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
PMF00 PRE CLEANER MINI MAX MFD 6 Ton/ Hr 315 RPM 5 HP/ 2800 RPM*
2 HP/ 1400 RPM*
2680 * 1873 * 2640

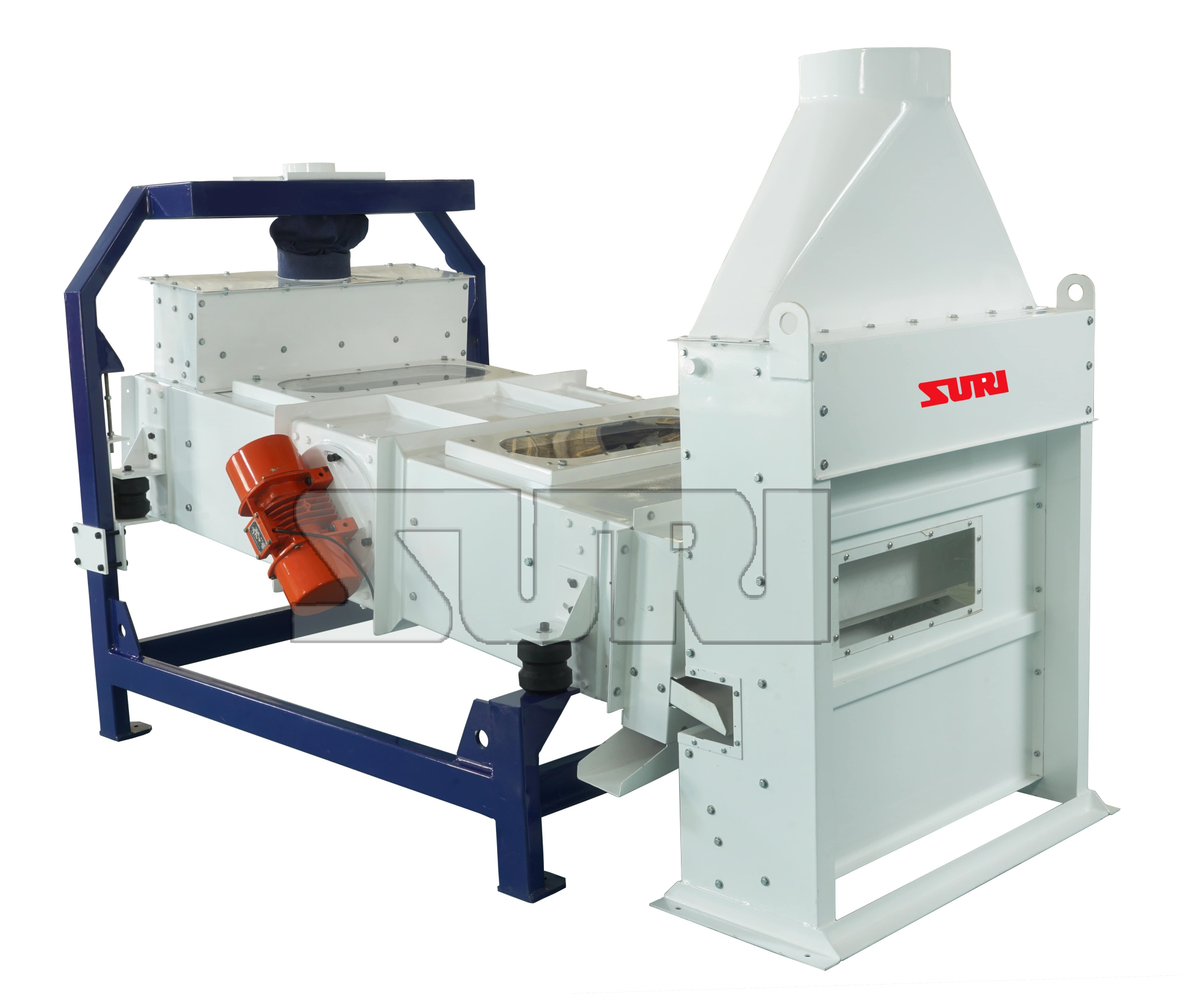

GRAIN CLASSIFIER

The main function of this pre cleaner is to remove oversized and undersized impurities such as stones and sand from the paddy.

Advantages :-

  •  Equipped with dust aspiration system.
  • Adjustable screen inclination.
  •  Designed with dust free operation.
  • Minimum vibration & noiseless operation.
  •  Vibration force can be easily adjustable.
Code No Product Name Capacity on Paddy Power Recommended Dimensions(L*B*H in mm)
GCL00 GREAIN CLASSFIER 4 Ton/ Hr 0.5 HP>/ 960 RPM* X 2No’s
5 HP/ 2880 RPM*
2482 * 1460 * 1742

GRAIN CLEANER MAX ULTRA

The main function of this pre cleaner is to remove oversized and undersized impurities such as stones and sand from the paddy. This also remove other impurities such as dust and straw.

Advantages :-

  •  Designed with double conveyor system ensuring best discharge of immature paddy.
  • Equipped with highly efficient suction blower.
  • Designed to accommodate easily removable trays.

Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
GCMU00 GRAIN CLEANER MAX ULTRA 15 Ton/Hr 335 RPM 2 HP/ 1440 RPM
7.5 HP/ 2800 RPM*
2 HP/ 1440 RPM*
3405 X 2185 X 2857
