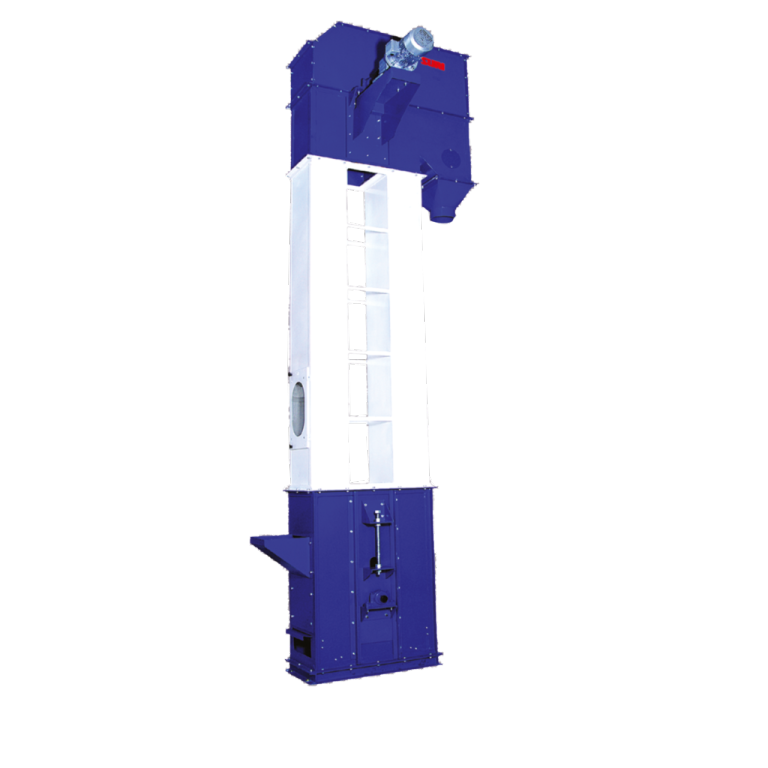

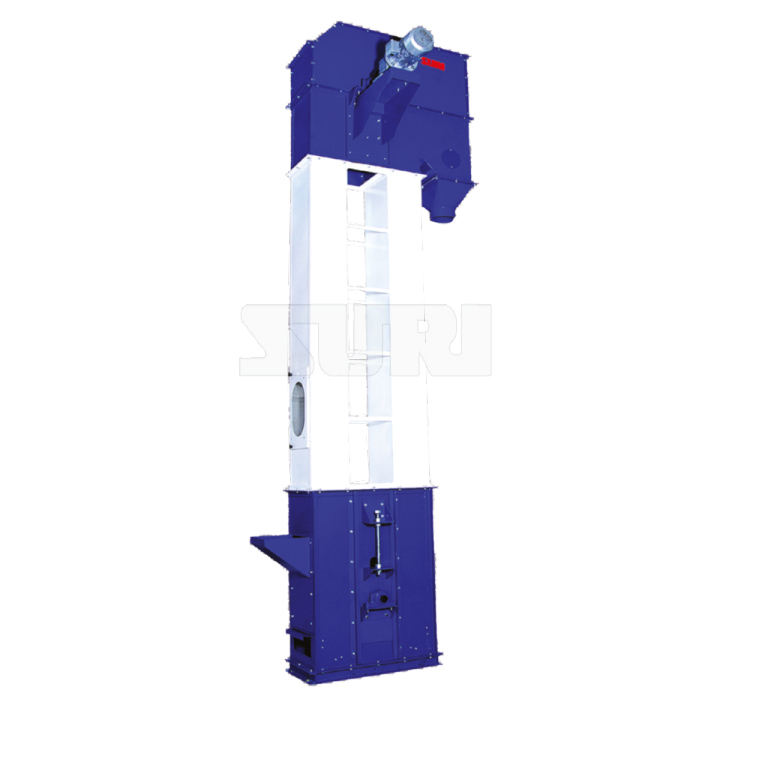

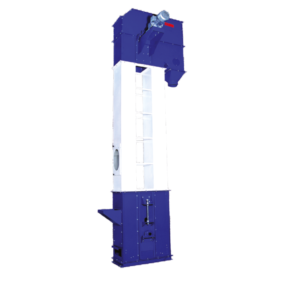

GRAIN DISCHARGER (S SERIES)

The main function of this machine is to transport the grains form one location to the next location. This elevator is designed to get positive discharge with optimum output at slow speed.

Advantage:-

Designed to get optimum output at slow speed with positive discharge.
Equipped with spoke pulley for better performance at the bottom deck .
Easy to erect and consumes less power.

Code No	Product Name	Capacity on Paddy	Speed	Power Recommended	Dimensions(LBH in mm)
GDS555	GRAIN DISCHARGER S555	3-4 ton/ hr	82 RPM	1 HP*/ 1440 RPM	935 * 670* 7775
GEMS6	GRAIN DISCHAGER S6	4-5 ton/ hr	82 RPM	1 HP*/ 1440 RPM	1018* 735* 7896
GDDLXF00	GRAIN DISCHAGER S66	6 ton/ hr	82 RPM	1.5 HP*/ 1440 RPM	1240 * 700 * 7750
GEMS8	GRAIN DISCHAGER S8	6-8 ton/ hr	82 RPM	1.5HP*/ 1440 RPM	1078* 785* 7896

GRAIN DISCHARGER S 12

The grain discharge is designed to get positive discharge with optimum output at slow speed.

Advantage:-

Designed to get optimum output at slow speed with positive discharge.
Equipped with spoke pulley at the bottom deck for better performance.
Easy to erect and consumes less power.
Recommended for higher capacities.

Code No	Product Name	Capacity on Paddy	Speed	Power Recommended	Dimensions(LBH in mm)
GDS12	GRAIN DISCHAGER S 12	20 ton/ hr	102 RPM	3 HP*/ 1440 RPM	1800 1060 10300
